SP600 Analogue Scanning Probe

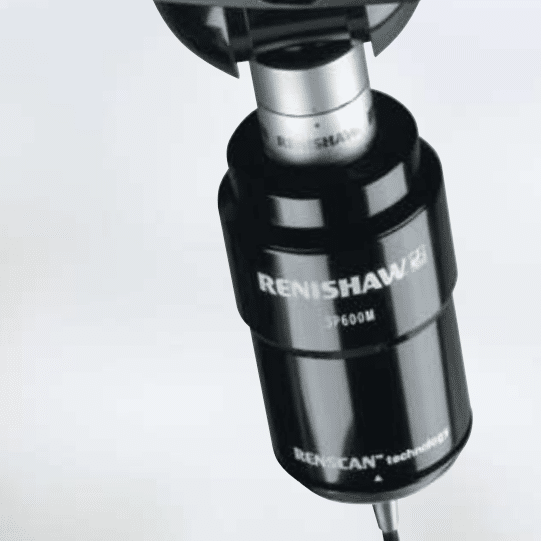

Three unique and highly versatile probe systems are within Renishaw's SP600 family of analogue CMM scanning probes: The SP600, SP600M and SP600Q.

All three of these probe systems offer high-performance inspection, digitising, and profile scanning capability for a wide range of CMMs.

Each system includes the probe itself, a PC interface card and a stylus module changing rack.





SP600 Scanning Probe SP600M Scanning Probe SP600-Q Scanning Probe
Length 89 mm 107.5 mm 98 mm
Weight 172 g 216 g 299 g
Mounting Adaptors to suit clutch, shank adaptor or CMM shank Renishaw autojoint: PH10M, PH10MQ or PH6M Direct in-quill mount to CMM
  • High speed scanning up to 300 mm/s, fast point CMM measurement and high frequency response.
  • Maximum application flexibility.
  • Extremely robust design.
  • Low probing force and low cost of ownership with an excellent product life, exceeding 50,000 hours in operation.
  • Low mass, high structural stiffness and friction free viscous damping give excellent dynamic performance characteristics.


Suitable interface AC1 or AC2 analogue converter PC card (optional)
Probe attributes 3-axis measurement (X, Y, Z) linear and parallel motion in all axes
Measurement range ±1 mm (±0.04 in) (X, Y, Z)
Overtravel range X, Y and –Z protected by a kinematic joint
Resolution 0.1 µm (0.000004 in) with optional AC2 interface card
0.5 µm (0.00002 in) with optional AC1 interface card
Spring rate 1.2 N/mm nominal (X, Y and Z)
Damping 20% (X, Y, Z) typical at 23 °C
Operating temperature 10 °C (50 °F) to 40 °C (104 °F)
Power supply +12 V to -12 V, 5 V (±10%)
Outputs (X,Y,Z) Analogue proportional voltage output scaling: 4 V to 8.5 V/mm
Stylus range M4
