Modular Fixturing for Vision Machines

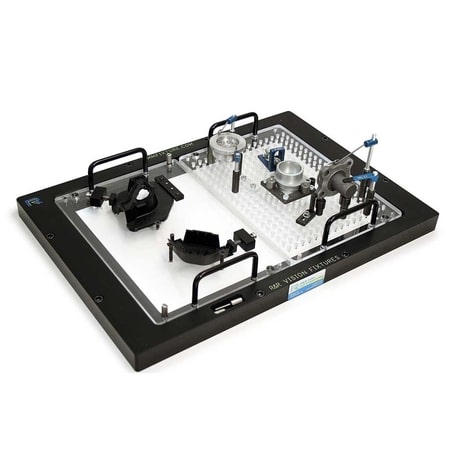

Renishaw modular CMM fixtures are designed for use with vision systems to hold parts of any size, shape or material in as free of state as possible. The acrylic base plate allows for a clear, clean look at the parts when elevated by components. Renishaw's vision components hold parts securely while enabling all features to be checked without obstructing the backlight or probe path.

Fast and Flexible

  • setup parts within minutes
  • base plates have multiple hole locations
  • wide variety of components
  • increase your thru-put with multiple part setups

Consistent setups

  • alphanumerically labeled base plates
  • components are laser etched with part numbers
  • document setups in 3D with FixtureBuilder CMM program

Fits any application

  • 1/4-20 and M4 components and base plates
  • acrylic base plates with cast aluminum frame made to fit your specific vision stage
  • 150 x 150mm (6" x 6") or 250 x 250mm (10" x 10") frameless base plates also available
